AEM's Brute Force Air Intake Systems are tuned and dyno-tested to give your engine more power and acceleration by replacing the restrictive factory air filter, air intake tubing and air box assembly.
The AEM 21-8504DC Brute Force Air Intake System produces horsepower and torque gains by replacing the vehicle's restrictive factory air filter and air intake housing. This air intake system was designed, tuned and dyno-tested to fit specific Nissan Frontier, Xterra and Pathfinder models. Air enters the system through an extra large AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The air filter is located in the original air box space and is protected by a heat shield which is designed to reduce intake air temperature and increase horsepower. The intake tubing is constructed from mandrel-bent aluminum featuring a durable gunmetal gray powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass air flow sensor and crank case vent hose. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools and it is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards while others are 50 state legal. View the 21-8504DC vehicle applications to determine the legal status for each vehicle.
- Increased Horsepower
- Tuned And DynoTested To Improve Acceleration And Engine Sound
- Low Restriction Aluminum Tubing
- Easy To Install Using Commonly Available Tools
- Air Filter Lasts Up To 100 000 Miles BF Cleaning Is Required
- Washable And Reusable Oil Free Filter Media
- AEM Lifetime Limited Warranty
Information:
Increased Horsepower; Tuned And DynoTested To Improve Acceleration And Engine Sound; Free Flowing High Density Tube; Air Filter Lasts Up To 100 000 Miles BF Cleaning Is Required; Washable And Reusable Oil Free Filter Media; Limited Lifetime Warranty
Application Summary:
| Year |
Make/Model |
| 2005-2015 |
Nissan Frontier |
| 2005-2012 |
Nissan Pathfinder |
| 2005-2014 |
Nissan Xterra |
| Attributes |
| ASIN |
B001DX9HLG |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
8.875 in (225 mm) |
| Air Filter Large End Diameter |
6 in (152 mm) |
| Air Filter Material |
Non-woven Synthetic |
| Air Filter Oulet Length |
3.250 in. (83mm) |
| Air Filter Oulet Width |
3.250 in. (83mm) |
| Air Filter Outlet Length |
3.25 in (83 mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
3.25 in (83 mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
AEM-21-8504DC |
| CARB EO Number |
D-670-21 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Steel |
| Clamp Quantity |
1 |
| Clamp Style |
Regular |
| Clamps Included |
1 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Not Applicable |
| Coupler Color/Finish |
Not Applicable |
| Couplers Included |
None |
| Emission Code |
Legal US |

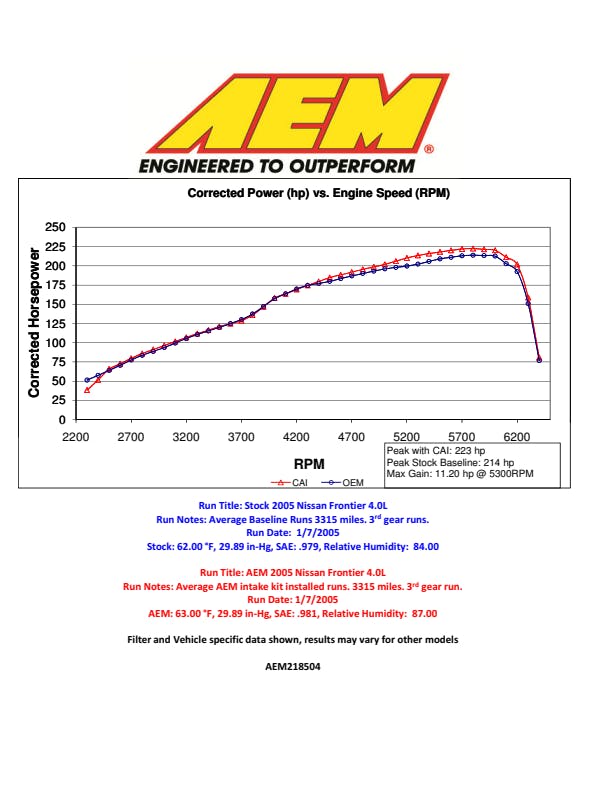

| Estimated Horse Power Gain |
11.2 HP @ 5300 RPM |
| Estimated Horsepower Gain |
11.2 HP @ 5300 RPM |
| Filter Color |
Red |
| Filter Material |
Non-woven Synthetic |
| GTIN |
00840879016425 |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
11 HP |
| Intake Pipe Color |
Gunmetal Gray |
| Intake Pipe Color / Finish |
Gunmetal Gray |
| Intake Pipe Inlet Length |
48 in (1219 mm) |
| Intake Pipe Inlet Shape |
Round |
| Intake Pipe Inlet Width |
3.25 in (83 mm) |
| Intake Pipe Material |
Aluminum |
| Intake Pipe Outlet Length |
48 in (1219 mm) |
| Intake Pipe Outlet Shape |
Round |
| Intake Pipe Outlet Width |
3.25 in (83 mm) |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
13.600 lbs. (6.2 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
No, No Filter Oil Required |
| Oversize Shipping |
OS1 |
| Package Material |
Paperboard |
| Package Type |
Box |
| Power Spacer included |
No |
| Product Box Height |
10.750 in. (273mm) |
| Product Box Length |
35.630 in. (905mm) |
| Product Box Width |
13.250 in. (337mm) |
| Product Style |
AEM Brute Force Intake System |
| RPM |
5300 |
| Replacement Filter |
21-2109DK |
| SDR Required Flag |
N |
| Spacer Included |
No |
| Standard Pack |
1 |
| Street Legal In All US States |
Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com. |
| System Type |
Cold Air Induction |
| TUV Approved (Europe) |
No |
| Warranty |
Limited Lifetime |
| Weight |
13.6 lb (6.2 kg) |
