AEM's Performance Cold Air Intake Systems are tuned and dyno-tested to give your engine more power and acceleration by replacing the restrictive factory air filter, air intake tubing and air box assembly.
The AEM 21-687C Performance Cold Air Intake System produces horsepower and torque gains by replacing your vehicle's restrictive factory air filter and air intake housing. This air intake system was designed, tuned and dyno-tested to fit specific Hyundai Genesis Coupe models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The air filter is located in the original air box space which is designed to reduce intake air temperature and increase horsepower. The intake tubing is constructed from mandrel-bent aluminum featuring a durable gunmetal gray powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the engine breather hoses. A replacement windshield washer bottle is included to adapt to the new shape of the air intake system. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions).
  • Increased Horsepower

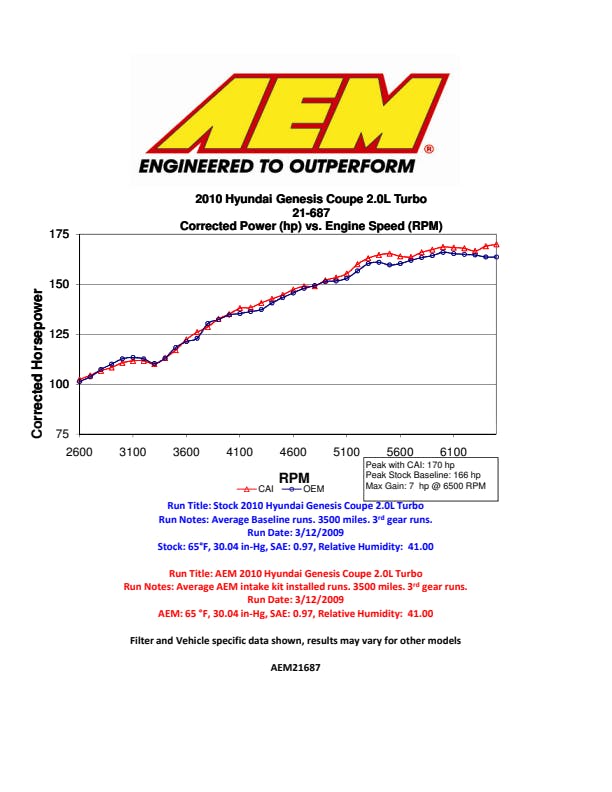

  • Tuned And DynoTested To Improve Acceleration And Engine Sound
  • Low Restriction Aluminum Intake Tube
  • Air Filter Lasts Up To 100 000 Miles BF Cleaning Is Required
  • Washable And Reusable Oil Free Filter Media
  • AEM Lifetime Limited Warranty
  • Manufactured And Assembled In The USA
  • Limited Lifetime Warranty

Information:

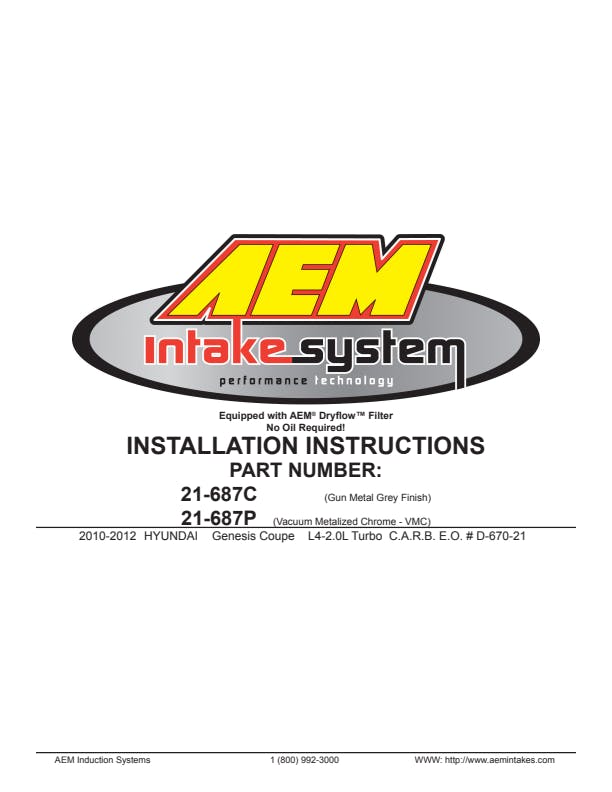

Increased Horsepower; Tuned And DynoTested To Improve Acceleration And Engine Sound; Low Restriction Tubing; Air Filter Lasts Up To 100 000 Miles BF Cleaning Is Required; Washable And Reusable Oil Free Filter Media; Comprehensive Installation Instructions; Manufactured And Assembled In The USA; Limited Lifetime Warranty

Application Summary:

Year Make/Model
2010-2012 Hyundai Genesis Coupe
Attributes
ASIN B00314M294
Air Box Included No
Air Filter Color Red
Air Filter Element Washable Yes
Air Filter Height 7 in (178 mm)
Air Filter Large End Diameter 5.25 in (133 mm)
Air Filter Material Non-woven Synthetic
Air Filter Oulet Length 3.500 in. (89mm)
Air Filter Oulet Width 3.500 in. (89mm)
Air Filter Outlet Length 3.5 in (89 mm)
Air Filter Outlet Shape Round
Air Filter Outlet Width 3.5 in (89 mm)
Air Filter Washable Yes
Alternate Part Number AEM-21-687C
CARB EO Number D-670-21
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color Natural
Clamp Color/Finish Natural
Clamp Material Steel
Clamp Quantity 5
Clamp Style Regular
Clamps Included 5
Country of Origin (Primary) US
Coupler Color Not Applicable
Coupler Color/Finish Black
Couplers Included 1
Emission Code Legal US
Estimated Horse Power Gain 7.0 HP @ 6500 RPM
Estimated Horsepower Gain 7.0 HP @ 6500 RPM
Filter Color Red
Filter Material Non-woven Synthetic
GTIN 00024844252463
Harmonized Tariff Code (Schedule B) 8421310000
Hazardous Material Code N
Horse Power Increase 7 HP
Intake Pipe Color Gunmetal Gray
Intake Pipe Color / Finish Gunmetal Gray
Intake Pipe Inlet Length 27 in (686 mm)
Intake Pipe Inlet Shape Round
Intake Pipe Inlet Width 3.5 in (89 mm)
Intake Pipe Material Aluminum
Intake Pipe Outlet Length 27 in (686 mm)
Intake Pipe Outlet Shape Round
Intake Pipe Outlet Width 3.5 in (89 mm)
Intake Pipe Ports All intake tube ports needed for the specified applications are included
Item Weight 7.800 lbs. (3.5 kg)
Life Cycle Status Code Available to Order
Mass Air Flow Sensor Adapter Included No
Mass Air Flow Sensor Included Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included Yes
NAFTA Preference Criterion Code B
Oil Included No, No Filter Oil Required
Package Material Paperboard
Package Type Box
Product Box Height 14.940 in. (379mm)
Product Box Length 22.200 in. (564mm)
Product Box Width 14.500 in. (368mm)
Product Style AEM Cold Air Intake System
RPM 6500
Replacement Filter 21-2047DK
SDR Required Flag N
Standard Pack 1
Street Legal Yes
Street Legal In All US States Legal for use in all 50 states.
System Type Cold Air Induction
TUV Approved (Europe) No
Warranty Limited Lifetime
Weight 7.8 lb (3.5 kg)
